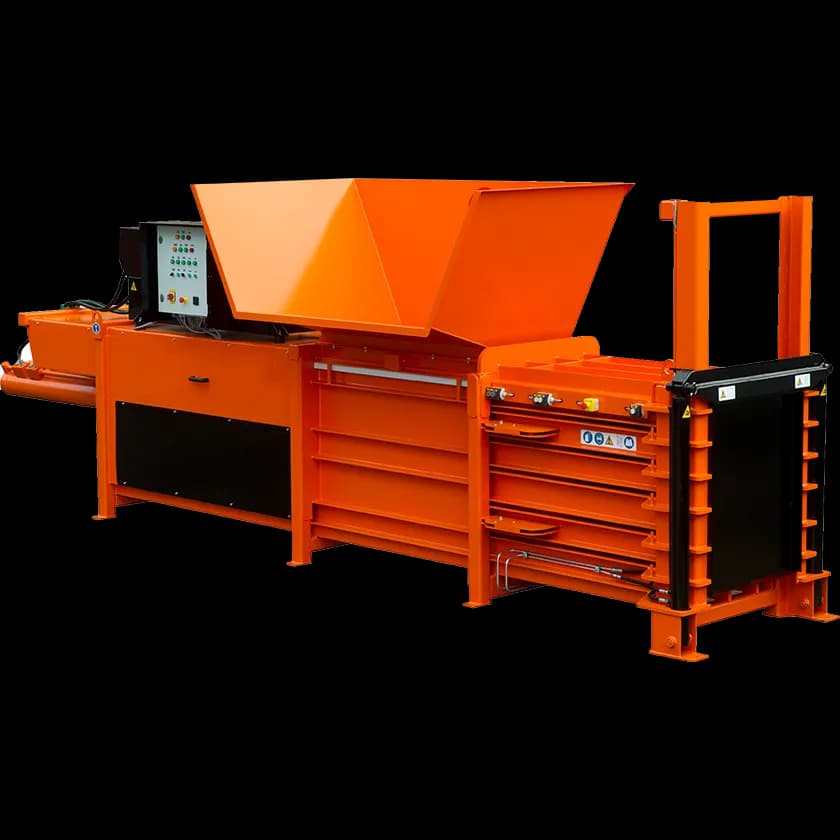

LFA 600 H – Horizontal Baler

We can modify the LFA 600 H baler to your specific needs. We can attach an integrated bin tipper, door dampener and retention claws. We can also adapt the hopper to suit your feeding method, the shearing blades to suit your material and we can also upgrade the motor to decrease the cycle time. For further customisation, contact us and we will try to meet all requirements.

• Features
  • E-stops
  • Automatic cycle
  • Anti-whip hoses
  • Wire guide slots
  • Magic eye sensor
  • Power pack cover
  • Vandal proof door
  • 3mm flared hopper
  • Bale full/jam beacon
  • Dual pressure switch
  • Hydraulic door clamp
  • Start-up alarm beacon
  • Manual forward/reverse
  • Automatic bale full system
  • 5-wire horizontal tying system
  • Simple, easy to operate controls
  • Interlocked access door on hopper
  • Retention claws inside the chamber
  • Economical second bale eject system
  • Aggressive ram head with sheer blades
  • Rated IP65 so safe to be sited inside or outside



  Benefits

  • Saves on labour from reduced material handling
  • Reduces storage space required for bulky waste
  • Reduces the need to flat pack/break down material
  • Reduces carbon footprint and complies with ISO 14001
  • Produces mill-size bale dimensions to optimise transport loads
  • Leads to a tidier working environment which improves health and safety
  • Reduces disposal costs and able to generate the maximum income for material

The LFA 600 H is very easy to use.

Step 1 – Feeding

This step is straight forward – press the green ‘go’ button to put the baler into idle mode. Feed the material into the hopper. A magic eye sensor sits at the bottom of the hopper and once the sensor detects material, the baler starts up and runs a full cycle compacting all of the material into the bale chamber. The material catches on the retention claws preventing it from springing back into the charge box. Continue feeding the material into the hopper, it will sit on top of the ram head dropping into the charge box when the ram returns.

Step 2 – When is the bale full?

This baler has an auto stop feature so when the bale is full, lights will flash on the control panel, the ram head stays forward, and the material stays under compression.

Step 3 – Tying off the bale

This baler is a horizontal tie which makes this step very easy. At the side of the bale chamber there are slots where the ram head which has bale wire channels is visible. Thread the wire (straight end first) through this channel and the wire will come out to the other side. There are slots in the door, so both ends of the wire need to be threaded through these. When both ends of the wire are together, thread the straight end of the wire through the loop end, pull the wire tight and wrap the wire around itself 3-4 times. Repeat this on the other wires.

Step 4 – Ejecting the bale

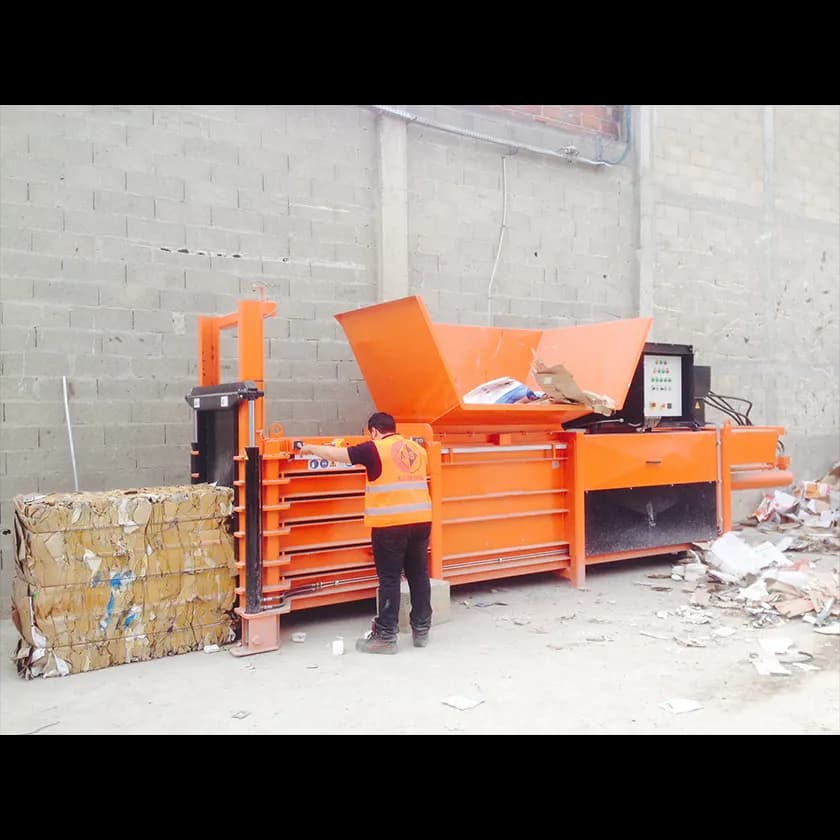

Once the bale is created, it needs to be ejected. Next to the door there are controls for the hydraulic door, press on both of these buttons until the door is unclamped. Swing the door open past 90° and place a pallet in front of the baler. On the main control panel, press the ‘reverse’ button until the ram head is all the way back. Feed the machine with material and press the ‘forward’ button. The material will start pushing the bale just created out. Do this 3-4 times until the bale is fully ejected. The bale now weighs up to 700kg sat on a pallet ready to be stored for collection. Close the door and hold down the two hydraulic door buttons to clamp the door shut.

As simple as that! It probably takes longer to read the operation than to implement it. As part of the package, one of our trusty engineers will come to site and show the team how to operate it in person. Training certification can be supplied if required.

*Note – Refurbished models may vary in its operation slightly, but the principle will remain very similar.
