Twin Ram Baler
Twin Ram Baler
Plastic Bale

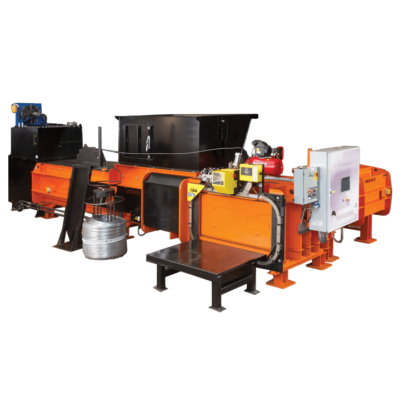

LFA TR 63 – Twin Ram Horizontal Baler

Description

The LFA TR 63 is a twin-ram fully automatic baler designed to produce high density bales. The multiple material baler produces a standard mill size bale which optimises the space in a shipping container and maximises the payload.

Bale Measurements
Width
1100mm
Height
750mm
Depth
1200mm
Weight ()
Weight ()
Weight ()
Weight ()
This creates a Mill Size bale that generates maximum rebate
Payment Options
Purchase
Lease
Availability
New
Refurbished

Product Details

Product Dimensions
Overall Width7200mm
Overall Height1600mm
Overall Depth4350mm
Feed Opening Width1050mm
Feed Opening Depth1530mm
Technical Specification
Compaction Force 60T
Motor 22kW
Cycle Time 18 Seconds
Throughput @ 30kg/m³ 2-3 T/Hr
Throughput @ 60kg/m³ 2.5-3.5 T/Hr
Throughput @ 120kg/m³ 4.5-6.5 T/Hr

Benefits

  • Automatic wire strapper
  • Multiple material programmes
  • Replaceable Hardox® liners in baling chamber
  • Tongue and groove castellated floor
  • Heavy duty shearing system with rotatable knives
  • Press plate running on steel rollers
  • Left or right hand ejecting options
  • Laser position sensors on all rams
  • HMI touch-screen – SIEMENS S7
  • PLC with Ethernet connection for monitoring and programming
  • Variable number of ties
  • Machine elevated for ease of maintenance and cleaning
  • Category 4 safety system.

LFA TR 63 – Twin Ram Horizontal Baler Brochure

Interested in learning more about the LFA TR 63 – Twin Ram Horizontal Baler? Leave your details below to get an instant free copy of our brochure.



    Benefits of Baling

    • ISO icon
      Reduce carbon footprint and comply with ISO 14001
    • Recycling Bin
      To reduce storage space required for bulky waste
    • Icon
      Reduce disposal costs and receive maximum income on the baled material
    • Commercial Recycling Factory
      To lead to a tidier work environment which improves health and safety
    • Cardboard Recycling Baler
      To reduce the need to flat pack/break down material
    • Labor Icon
      To save on labour from reduced material handling
