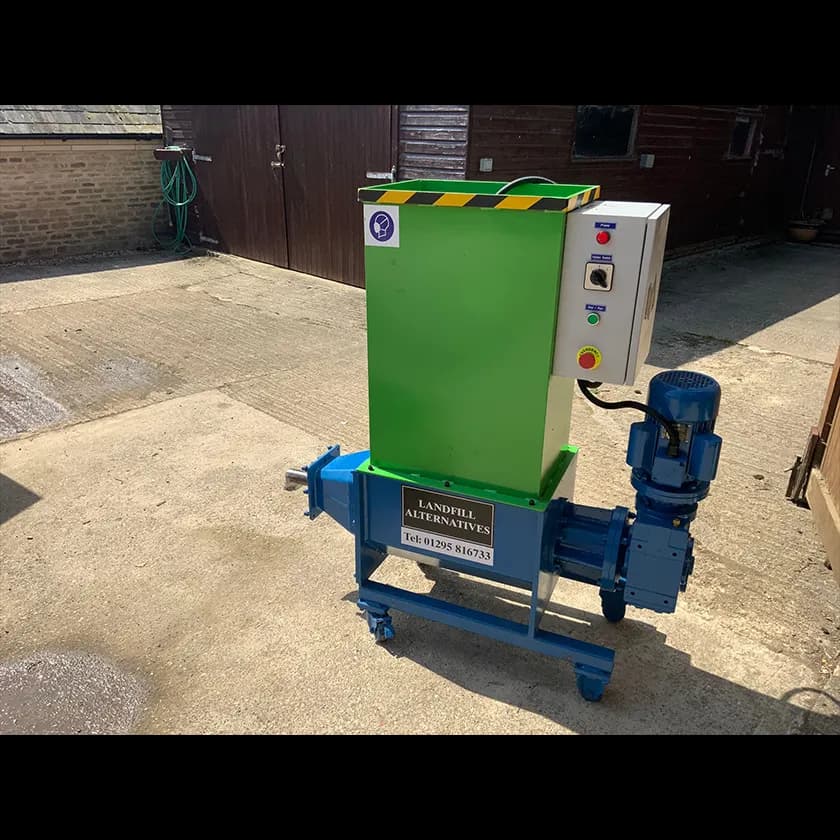

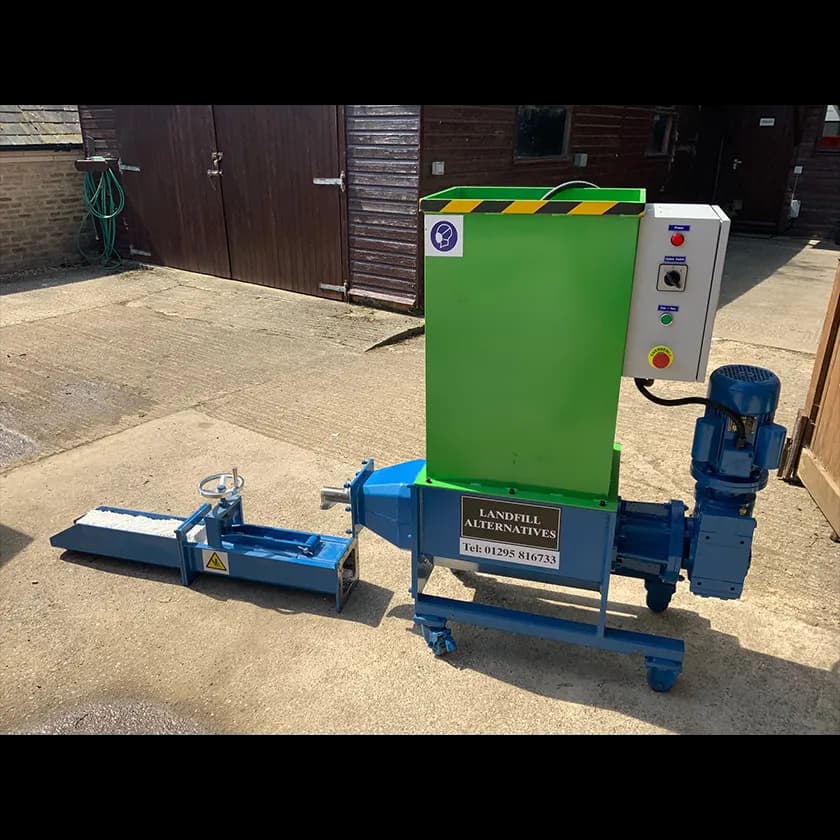

LFA PD 1000 – Small Polystyrene Densifier
The LFA PD 1000 is our small polystyrene densifier that chews up EPS and screw compacts it into an extremely dense block which is then easy to store and recycle. The LFA PD 1000 is ideal for small quantities and size of material and has a straightforward operation meaning material can be loaded continuously as the waste is produced. Due to its 1.5kW motor, it is able to process up to 25kg of polystyrene an hour compacting it down at a ratio of 40:1 into an extra dense 130x130mm block.
Product Details
| Product Dimensions | |
|---|---|
| Overall Width | 2950mm |
| Overall Height | 1750mm |
| Overall Depth | 500mm |
| Feed Opening Width | 750mm |
| Feed Opening Depth | 340mm |
| Loading Height | 1350mm |
| Technical Specification | |
|---|---|
| Motor | 1.5kW |
| Throughput Per Hour | < 25kg |
| Hopper Volume | .25m³ |
| Block Size | 130 x 130mm |
| Block Length | ∞ |
| Electricity Supply | 3 Phase, 415V, 16A |
Features
- E-stops
- Small footprint
- Straight hopper
- Manual reverse
- Pre crush screw
- Ejection channel
- Screw compactor
- Manual channel adjuster
- Simple, easy to operate controls
Benefits
- Continuous feed
- Low maintenance
- Extremely large 40:1 compaction ratio
- Reduces quantity of bins/skips required on site
- Reduces storage space required for bulky waste
- Reduces carbon footprint and complies with ISO 14001
- Reduces disposal costs and able to generate an income for material
- Leads to a tidier working environment which improves health and safety
The LFA PD 1000 is very easy to use.

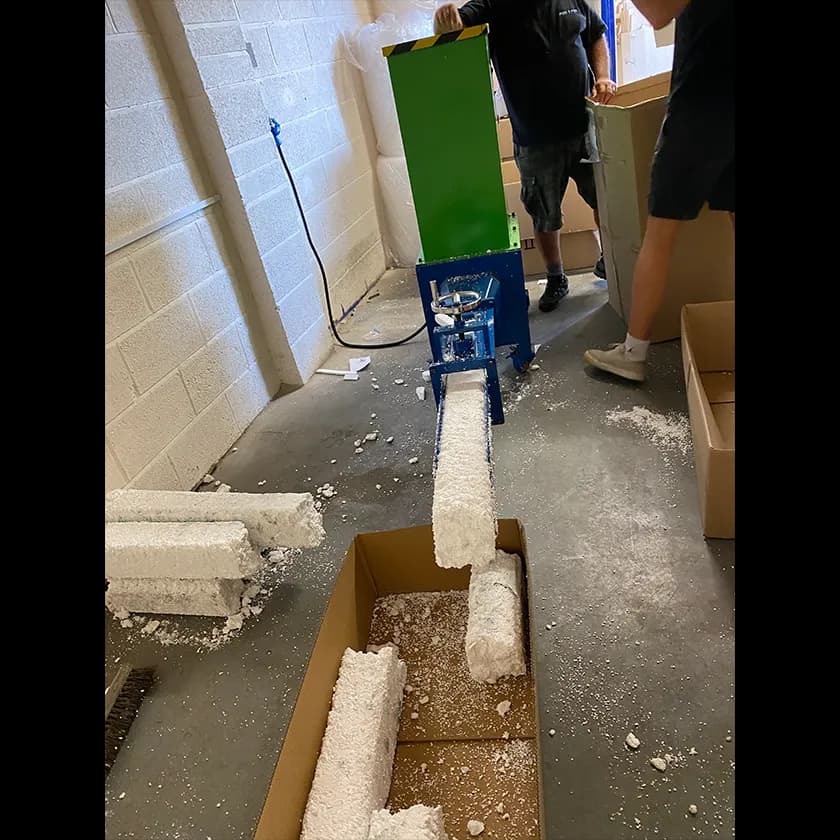

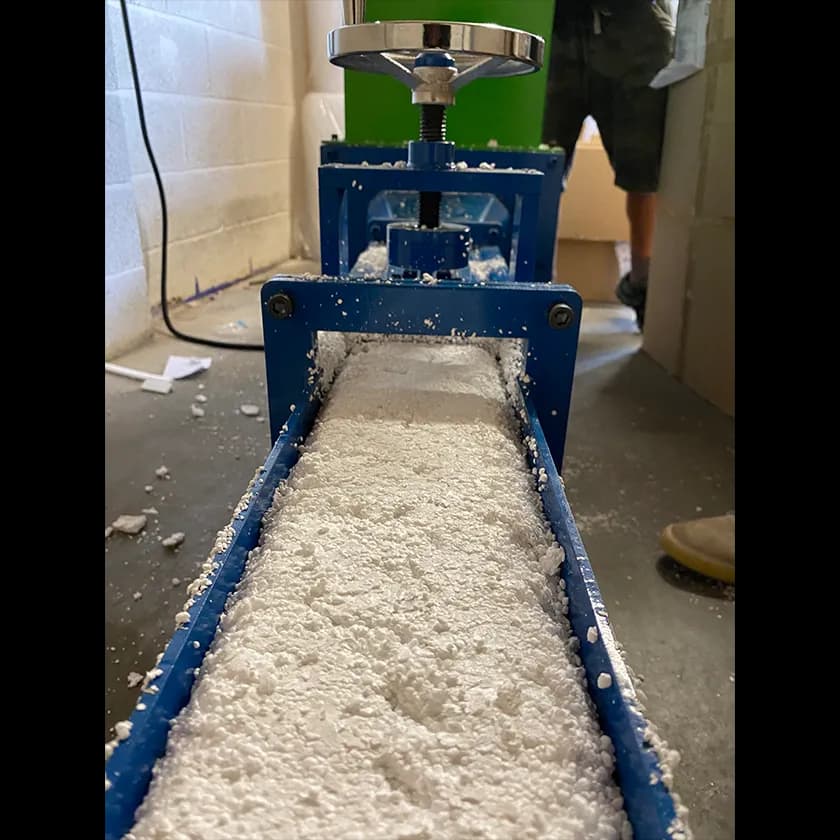

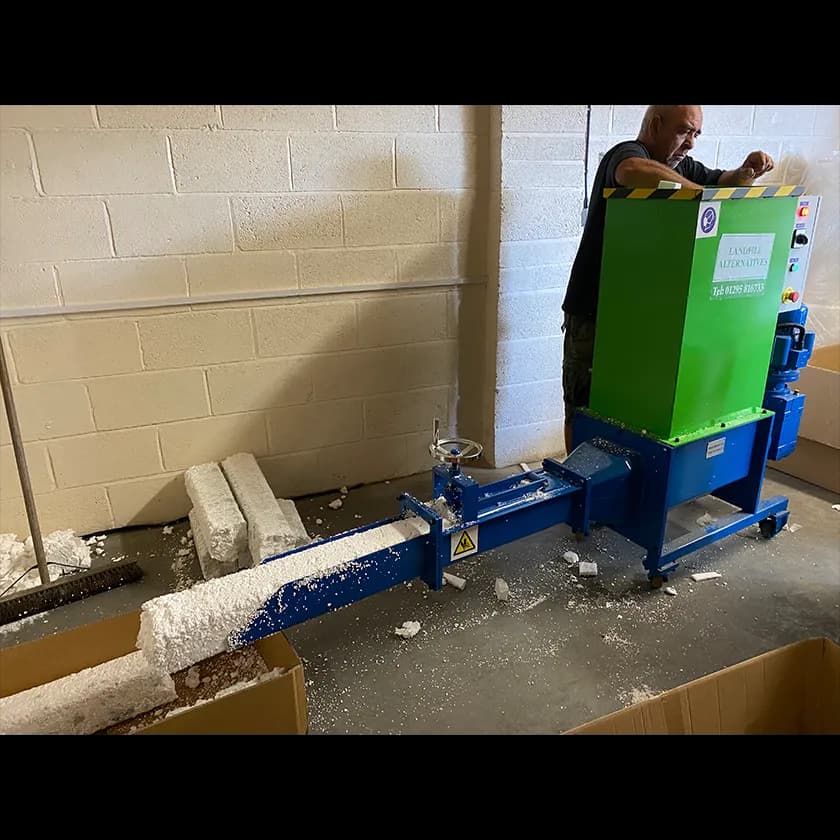

When first using the machine, the operator loosens the channel adjuster slightly to allow material to easily eject. They then press the green button to ‘go’ and start feeding the hopper with EPS. The pre crush screw starts chewing the material up and pushes it into the screw compactor chamber which compacts the polystyrene into the ejection channel. When the EPS starts ejecting past the channel adjuster, the operator slowly tightens the adjuster to start building up resistance until a solid block is being created. The operator can now continually feed the hopper creating blocks at their desired length.

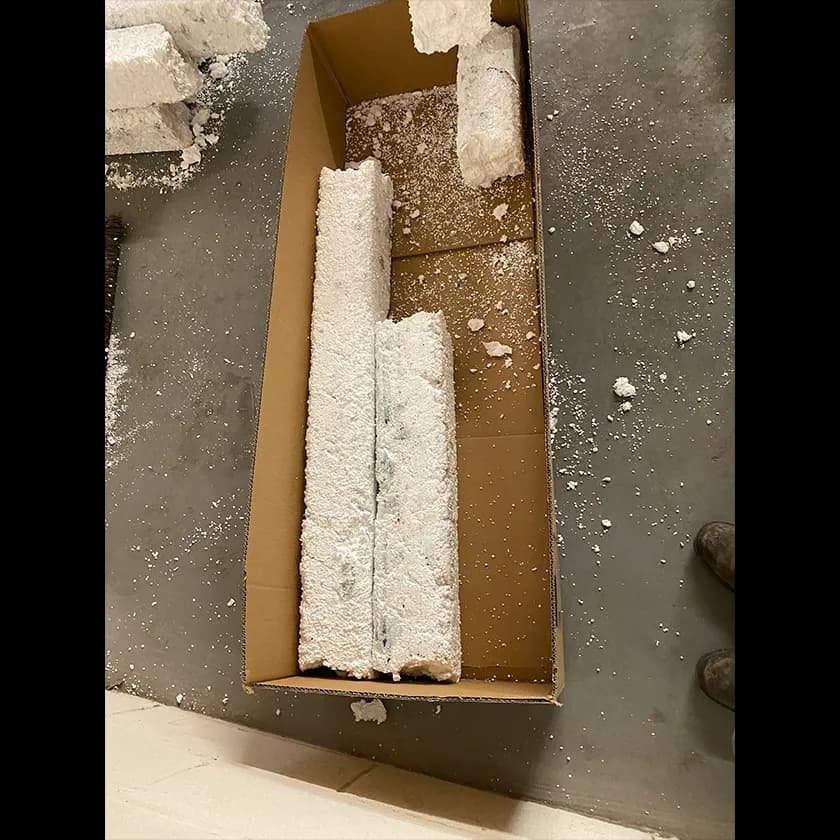

| Block Measurements | |
|---|---|
| Height | 130mm |
| Width | 130mm |
| Length | ≤ ∞ |
